1. Extensive compatibility: KW308 has strong compatibility and is suitable for connecting various devices. It can be directly inserted into the OBD2 socket of the car. It can also be used to test OBD terminals of different specifications.
2. Safety: The product is designed to prevent the reverse connection of the power supply. When the reverse connection occurs, the kw308 will emit an alarm sound. Can protect the diagnostic instrument from damage such as power short circuit,very useful function

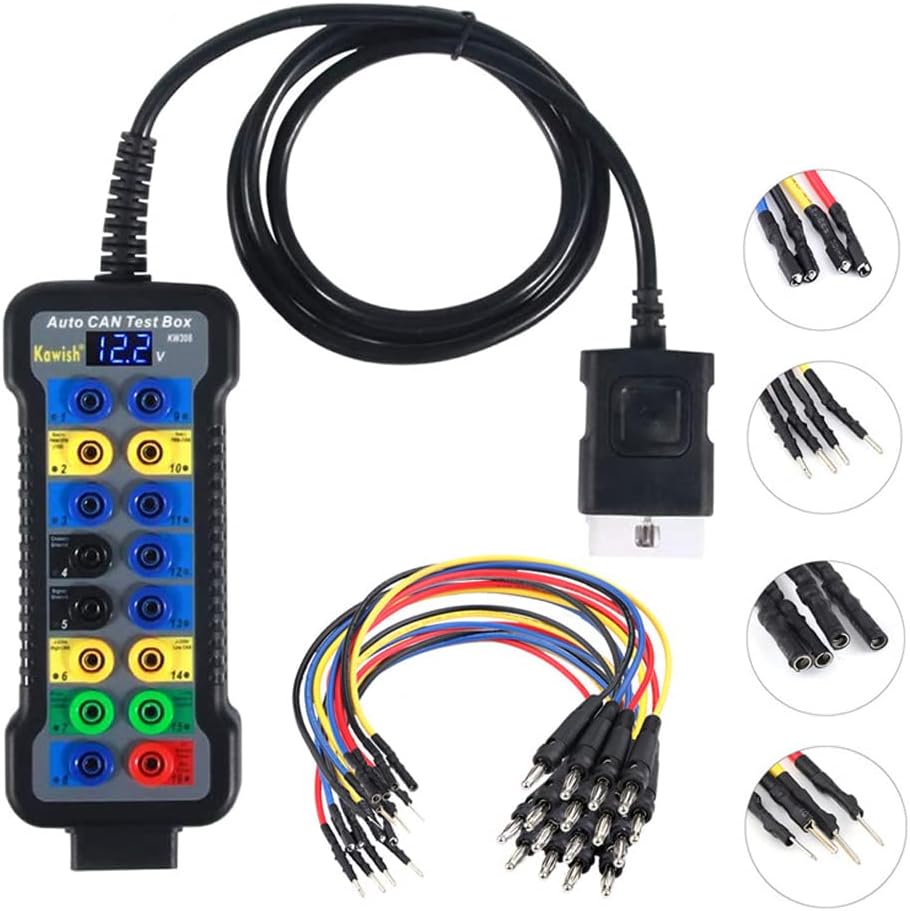

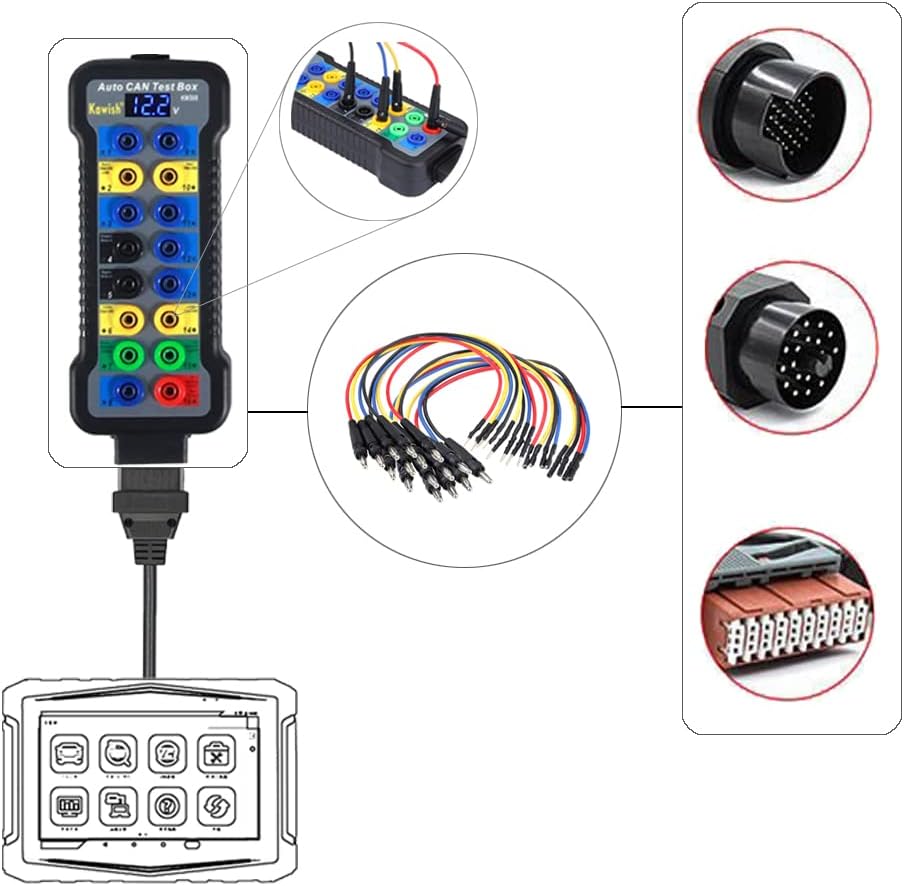

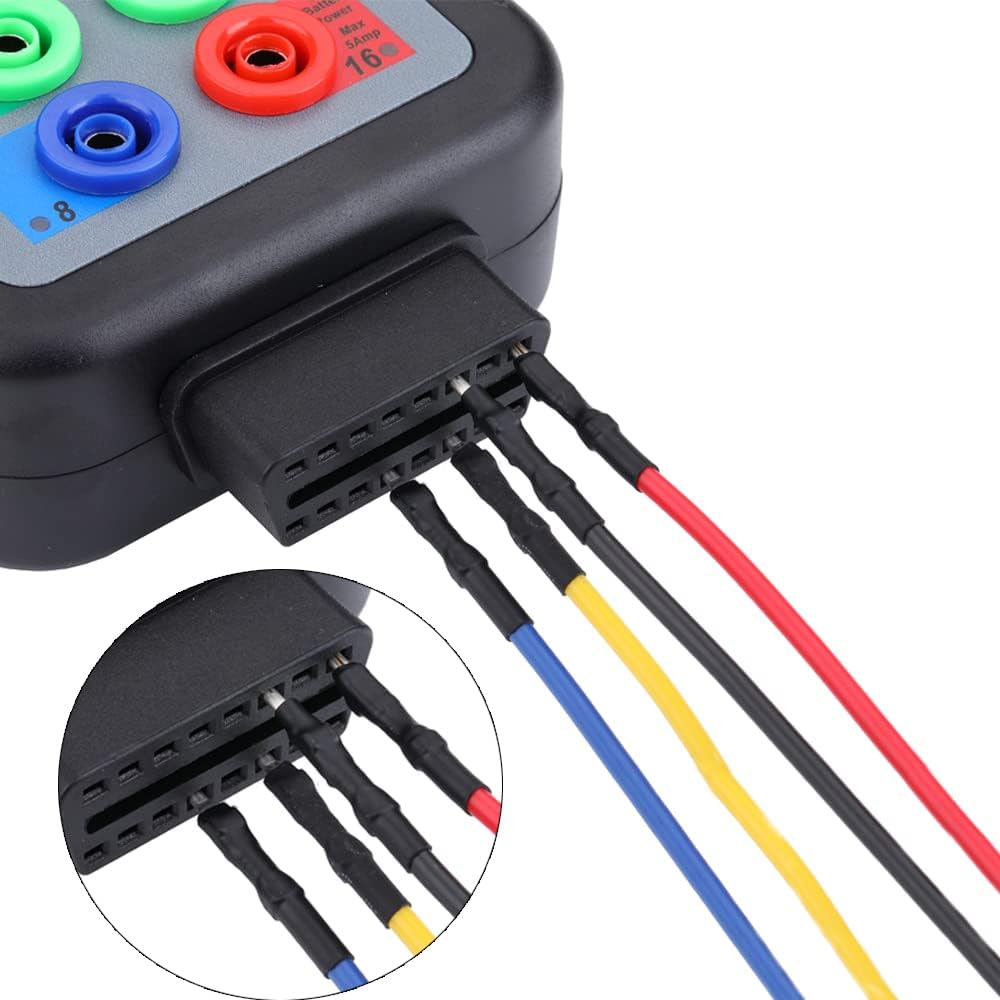

3. Flexible conversion: 16 sockets can be wired flexibly, not affected by different sockets and terminals, and can be connected to multiple instruments for testing at the same time
4. Support multiple types: can detect PWM (J1850) VPW (J1850) ISO 9141-2, DIS/ISO 14230-4 (12V car and 24V diesel) CAN bus (J-2284) (SAEJ1939) power signal and ground signal
5. High-quality service: one-year quality assurance, technical guidance at any time, if you have any dissatisfaction or good ideas in use, please contact us in time
6 Fuctions:

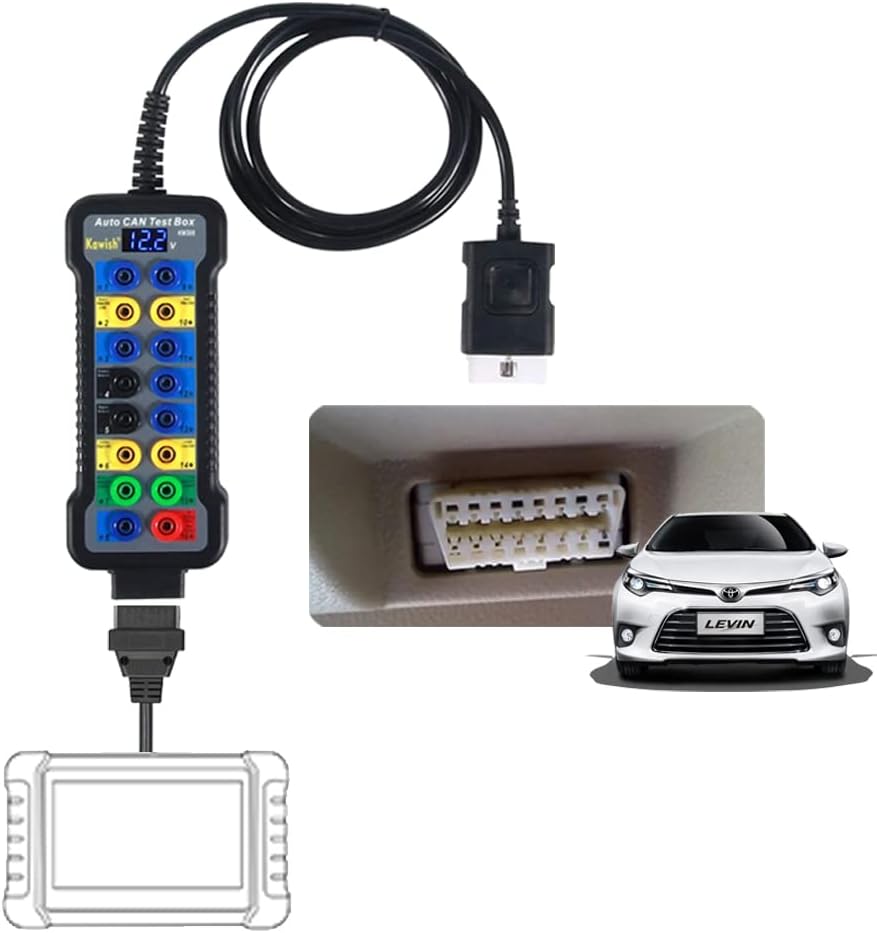

1.OBD2 Male to female extension cable
The cable can Connect between Diagnostic Link Connector (DLC) and scan tool

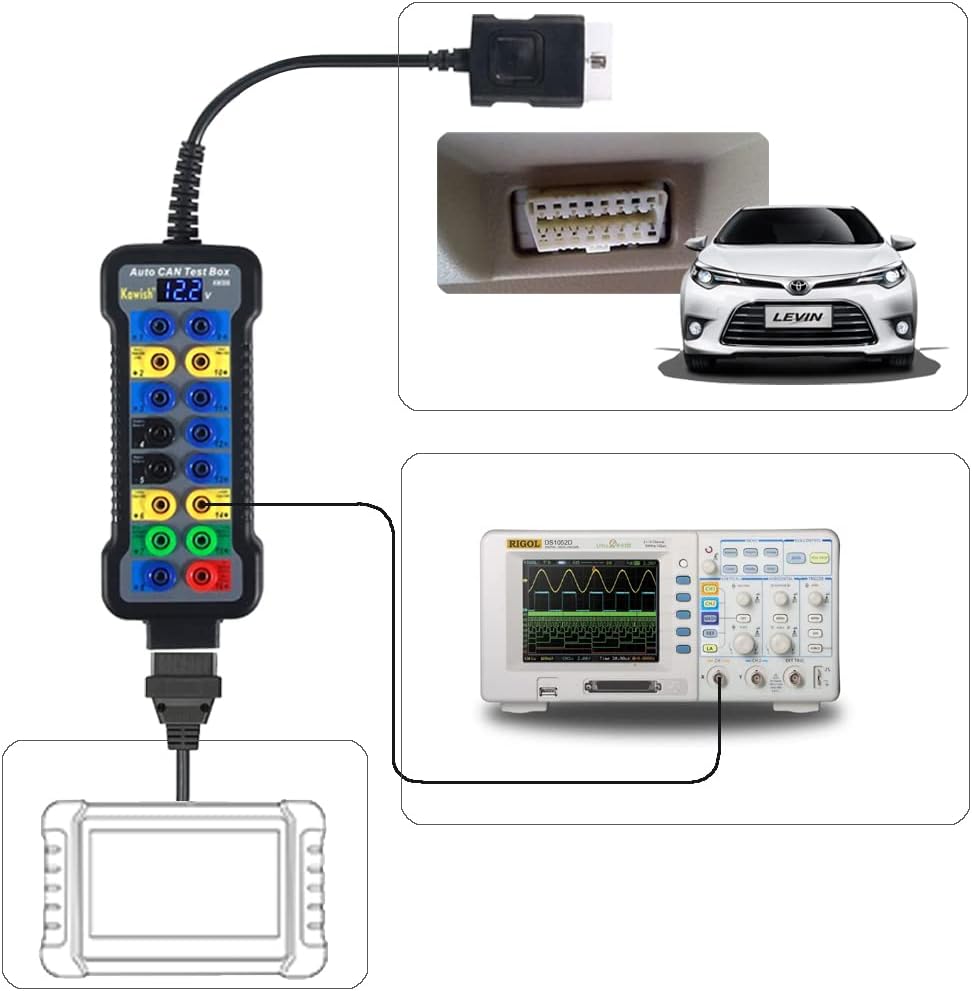

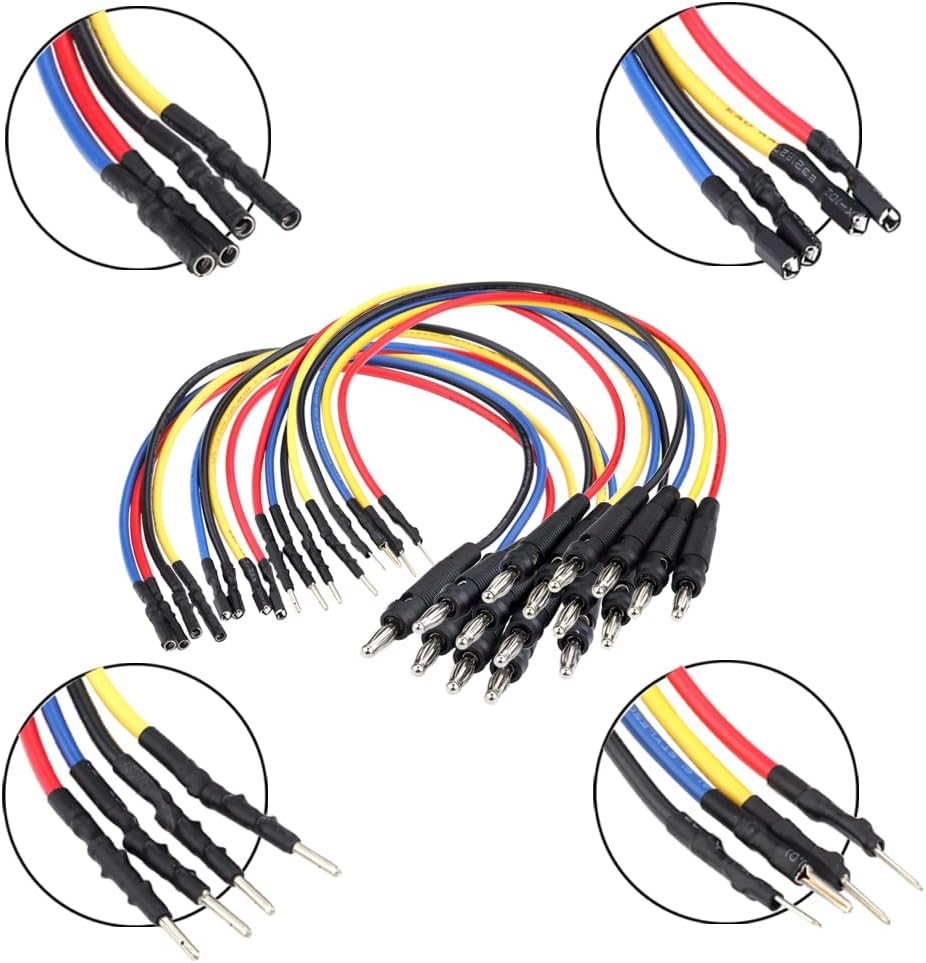

2. All OBD signal breakout with 4mm Banana socket

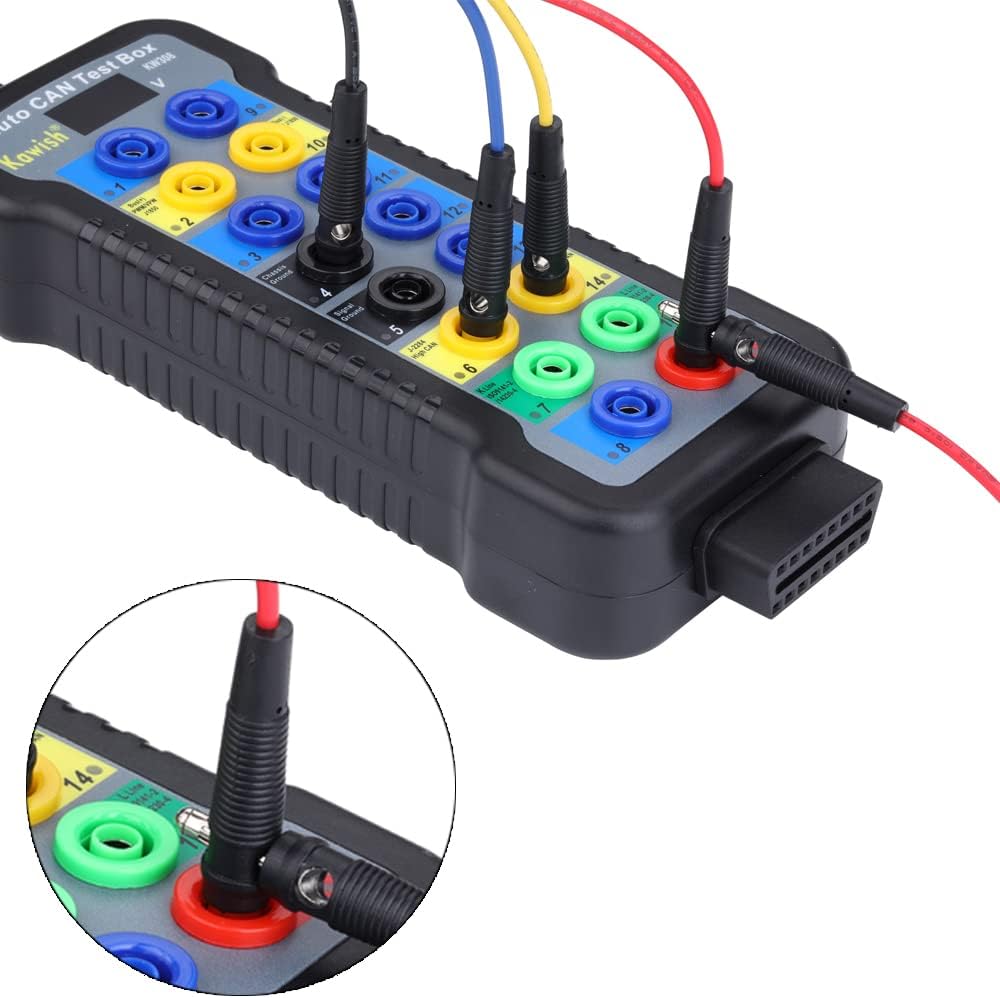

16 4mm banana sockets breakout all OBD signal for to Connect a multimeter or oscilloscope for detailed signal analysis
3. OBD Signal Detects:
The LED can Detect PWM (J1850)/VPW (J1850) ISO 9141-2/DIS/ISO 14230-4 (12V car and 24V diesel)/CAN bus (J-2284) (SAEJ1939) Power signal and ground signal

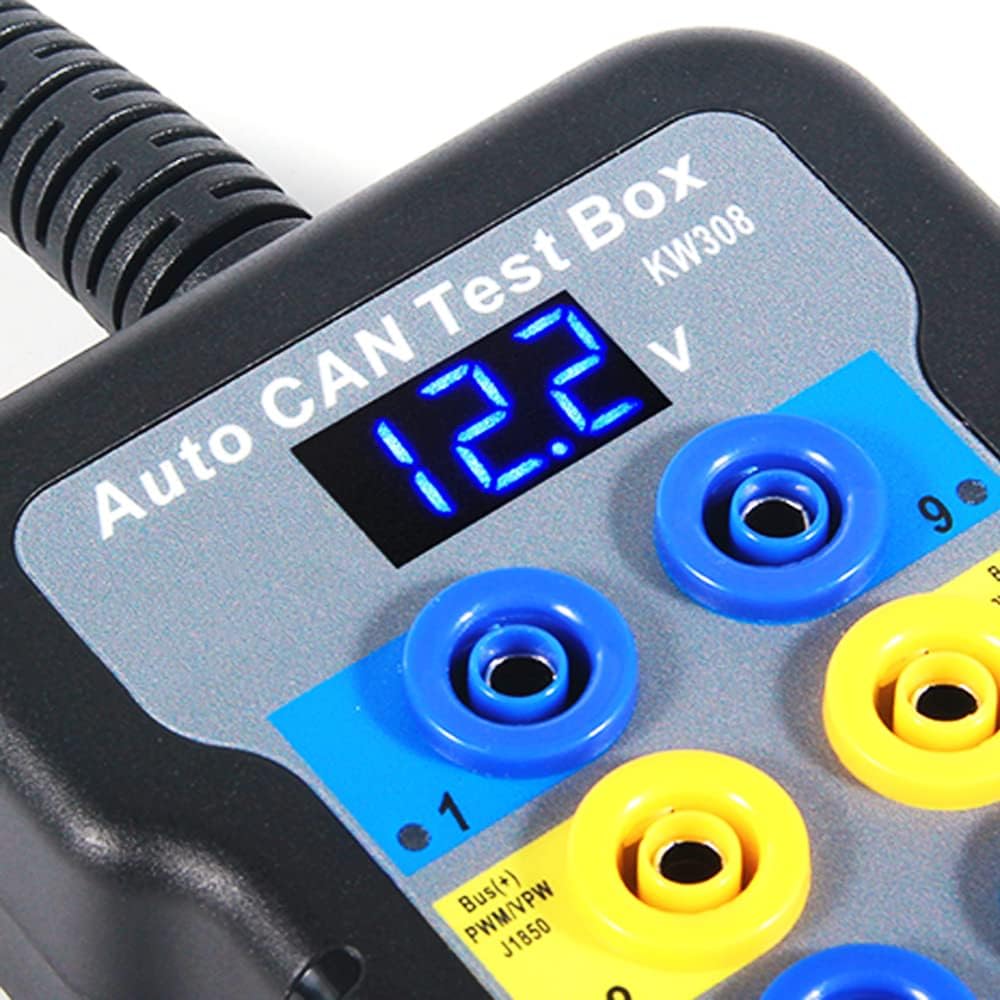

4. Battery voltage monitor:
3-digit blue LED Voltmeter can display of voltage, Measuring range from 8-30V.So the BOX not only can detect car signal ,also can detect some of diesel signal for example the diesel of K-line L-line and CAN bus (SAEJ1939)

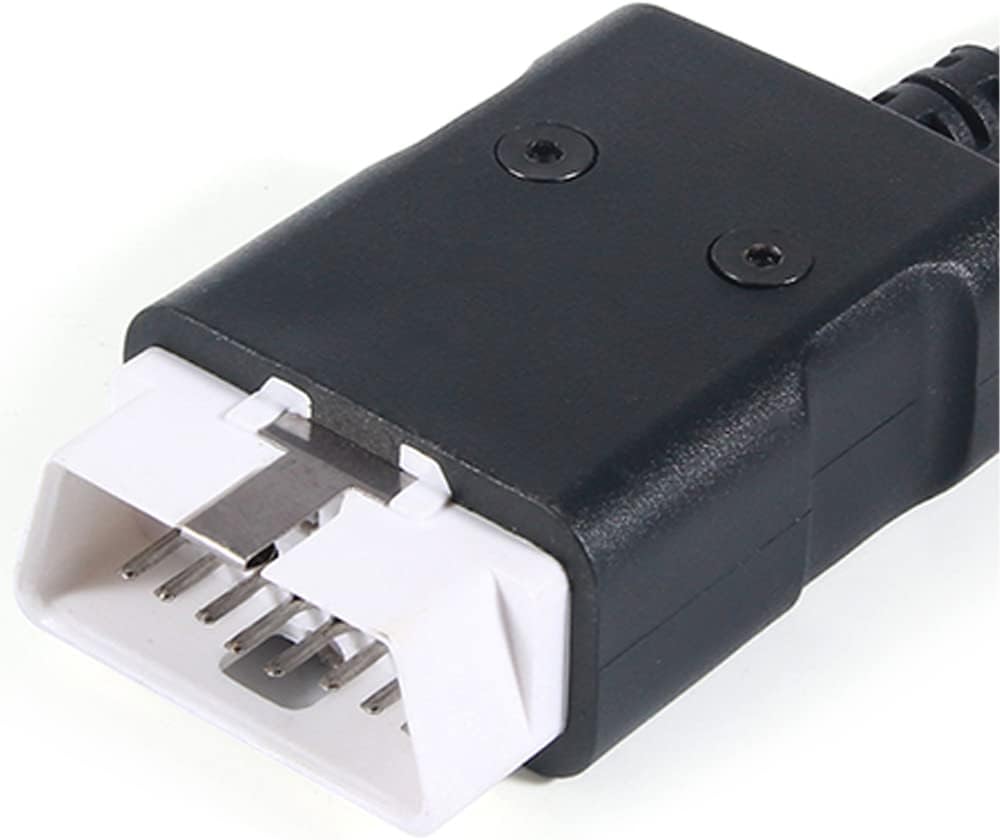

5.with flashlight function of OBD Connector:
The OBD Male Connector with flashlight function and the button,When operating in the dark the flashlight will be very useful
6.Prevent reverse connection
When the ECU wiring is reversed, the test box will emit an alarm sound
RedLED
16-Battery Power On when plugged into DLC
4-Chassis Ground On when Power reverse connection
5-Signal Ground On when Power reverse connection
GreenLED
4-Chassis Ground On when plugged into DLC /5-Signal Ground On when plugged into DLC
7-KLine(ISO9141-2andISO14230-4)/15-LLine(ISO9141-2andISO14230-4)
YellowLED
2-Bus+ Line of SAEJ1850(PWM/VPW)/10-Bus- Line of SAEJ1850(PWM)
6-CAN High of SAEJ2284(ISO15765-4)/14-CAN Low of SAEJ2284(ISO15765-4)
BlueLED
1-OEM Discretionary/3-OEM Discretionary/8-OEM Discretionary/9-OEM Discretionary
11-OEM Discretionary/12-OEM Discretionary/13-OEM Discretionary
